Rack-mounted MxN Matrix Optical Switch (1<M,N≤128)

Name: Rack-mounted MxN Matrix Optical Switch (1<M,N≤128)
Class: Rack-mounted Optical Switch
Type: Rack mount Matrix Optical Switch

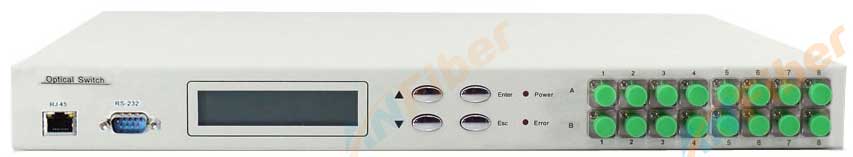

Rack mount MXN Matrix Optical Switches(Single mode and Multimode)
Rackmount Optical Matrix Switches(MXN=2X4,4X4,4X8,8X8,12X12,16X16,24X24,32X32,48X48,64X64,96X96,128X128) allow simultaneous connection between a number of input and output fibers, in a fully non-blocking, all-optical, cross-connect configuration. Matrix optical switches are useful to add redundancy to an optical network, or for resource sharing in test & measurement applications.Rack mount Matrix Optical Switches can be manually selected from front panel or control via RS232 port, Ethernet port.This matrix optical switch is available in any MxN size up to 128x128.
  • Features of Matrix Optical Switches:
  • Low loss,High Reliability,High Stability
  • Available in any MxN configuration up to 128x128
  • Many configuration possibilities
  • Easy-to-use Rackmount Housing,LCD Display
  • RS232 and Ethernet Interface,User Friendly
  • Applications of Matrix Optical Switches:
  • High-volume production testing
  • Testing of fiber,optical component
  • Dynamic Management of Optical Networks
  • Multiple device testing
  • Secure Communications

  • Single mode and Multimode Rack mount Optical Matrix Switches(2X4,4X4,4X8,8X8,12X12,16X16,24X24,32X32,48X48,64X64,96X96,128X128)

    Specifications Matrix Optical Switches:
    Parameters   ANFIBER-FSW-MXN Matrix   M,N (1 ~ 128)
    Insertion loss dB M,N (2 ~ 32) M,N (32 ~ 64) M,N (64 ~ 96) M,N (96 ~ 128)
    Typ:0.8  Max:1.0 Typ:1.0  Max:1.2 Typ:1.2  Max:1.5 Typ:1.5  Max:2.0
    Operating wavelength nm 850±40 / 1300±40 1260~1650
    Test Wavelength nm 850/1300 1310/1550
    Return loss dB SM≥55   MM≥30
    Crosstalk dB ≥55
    PDL dB ≤0.05
    WDL dB ≤0.25
    TDL dB ≤0.25
    Repeatability dB ≤±0.05
    Lifetime times 107
    Transmission power mW ≤500
    Switch time ms ≤10
    Operating temperature -10+60
    Storage temperature -40+80
    Relative Humidity % 5   ~  95
    Supervision interface   Ethernet Interface and RS232( or RS-485 )
    Power supply V AC 85-264V,50/60Hz   OR    DC(36-72)V
    Dimensions mm 1U L483XW200XH44 (Up to 20 channel) customization is available.
    2U L483XW303XH89 (Up to 64 channel) customization is available.
    3U L483XW303XH139 (Up to 96 channel) customization is available.
    4U L483XW303XH177 (Up to 128 channel) customization is available.

    Rear Panel of Matrix Optical Switches:
    Single mode and Multimode Rack mount Optical Matrix Switches(2X4,4X4,4X8,8X8,12X12,16X16,24X24,32X32,48X48,64X64,96X96,128X128)
    Ordering Information:
    N A B C D E F
    Channel Package Mode Wavelength Voltage Type Fiber type Connector
    2X4
    4X4
    4X8
    8X8

    16X16

    X: Other

    1U
    2U
    3U
    4U
    6U
    8U
    X: Other
    S:SM
    M:MM
    X: Other
    85: 850nm
    13: 1310nm
    15: 1550nm
    13/15:1310/1550nm
    X: Other
    AC: 85-264V
    DC: 36-72V
    AC/ DC:
    220V&48V
    5:50/125
    6:62.5/125
    9: 9/125
    X: Other
    FP: FC/PC
    FA: FC/APC
    SP: SC/PC
    SA: SC/APC
    SP: ST/PC
    SA: ST/APC
    LP: LC/PC
    LA: LC/APC
    X: Other

    Rack mount Matrix Optical Switches(2X4,4X4,4X8,8X8,12X12,16X16,24X24,32X32,48X48,64X64,96X96,128X128)
