Rackmount M-1XN Optical Switch (1<M,N≤512)

Name: Rackmount M-1XN Optical Switch (1<M,N≤512)
Class: Rack-mounted Optical Switch
Type: Rack-mounted Optical Switch
Rack-mounted M-1XN Optical Switch(3-1X4,4-2X4,3-4X4 etc)(Single mode and Multimode)
Rackmount M-1XN Fiber Optical Switch is equivalent to M single 1XN fiber optic switches in one switch that change state together (they also can be switched independently).Rackmount Optical Switches can be manually selected from front panel or control via RS232 port, Ethernet port.This Rackmount optical switch is available in any 1XN size up to 1x512,and can be built as a 8-1x4,1X8,1X9,1X10,1X12,1X16,1X24,1X32,1X48,1X64,1X96,1X128,1X512,etc.
  • Features of Rackmount Optical Switches:
  • Low loss,High Reliability,High Stability
  • Available in M pcs 1xN configuration up to 1x512
  • Easy-to-use Rackmount Housing,LCD Display
  • RS232 and Ethernet Interface,User Friendly
  • Applications of Rackmount Optical Switches:
  • High-volume production testing
  • Testing of fiber,optical component
  • Dynamic Management of Optical Networks
  • Secure Communications

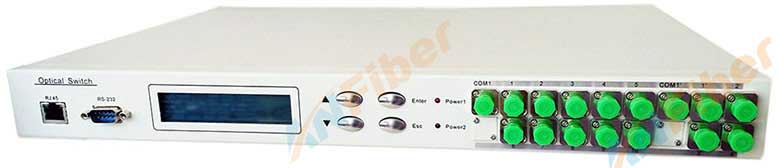

  • Single mode and Multimode Rack mount M 1XN Optical Switches(1x4,1X8,1X9,1X10,1X12,1X16,1X24,1X32,1X48,1X64,1X96,1X128,1X512)
    Specifications of Rackmount Optical Switches:
    Parameters   ANFIBER-FSW-M-1XN  M,N (1 ~ 512)
    Insertion loss dB N (1 ~ 64) N (64 ~ 128) N (128 ~ 256) N (256 ~ 512)
    Typ:0.8  Max:1.0 Typ:1.0  Max:1.2 Typ:1.2  Max:1.5 Typ:1.5  Max:2.0
    Operating wavelength nm 850±40 / 1300±40 1260~1650
    Test Wavelength nm 850/1300 1310/1550
    Return loss dB SM≥55   MM≥30
    Crosstalk dB ≥55
    PDL dB ≤0.05
    WDL dB ≤0.25
    TDL dB ≤0.25
    Repeatability dB ≤±0.05
    Lifetime times 107
    Transmission power mW ≤500
    Switch time ms ≤10(Sequence switch time of adjacent channel)
    Operating temperature -10+60
    Storage temperature -40+80
    Relative Humidity % 5   ~  95
    Supervision interface   Ethernet Interface and RS232( or RS-485 )
    Power supply V AC 85-264V,50/60Hz   OR    DC(36-72)V
    Dimensions mm 1U L483XW200XH44 (Up to 20 channel) customization is available.
    2U L483XW303XH89 (Up to 64 channel) customization is available.
    3U L483XW303XH139 (Up to 128 channel) customization is available.
    4U L483XW303XH177 (Up to 256 channel) customization is available.

    Rear Panel of Rackmount Optical Switches:
    Single mode and Multimode Rack mount M 1XN Optical Switches(1x4,1X8,1X9,1X10,1X12,1X16,1X24,1X32,1X48,1X64,1X96,1X128,1X512)
    Ordering Information of Rackmount Optical Switches:
    M,N A B C D E F
    Channel Package Mode Wavelength Voltage Type Fiber type Connector
    1~32
    32~64
    64~128
    128~256
    256~512
    1U
    2U
    3U
    4U
    6U
    8U
    X: Other
    S:SM
    M:MM
    X: Other
    85: 850nm
    13: 1310nm
    15: 1550nm
    13/15:1310/1550nm
    X: Other
    AC: 85-264V
    DC: 36-72V
    AC/ DC:
    220V&48V
    5:50/125
    6:62.5/125
    9: 9/125
    X: Other
    FP: FC/PC
    FA: FC/APC
    SP: SC/PC
    SA: SC/APC
    SP: ST/PC
    SA: ST/APC
    LP: LC/PC
    LA: LC/APC
    X: Other

    Rackmount M-1XN Optical Switches(1x4,1X8,1X9,1X10,1X12,1X16,1X24,1X32,1X48,1X64,1X96,1X128,1X512)
