Rack Mount 2X8 Optical Switch

Name: Rack Mount 2X8 Optical Switch
Class: Rack-mounted Optical Switch
Type: Rack-Mounted 2X8 Optical Switch

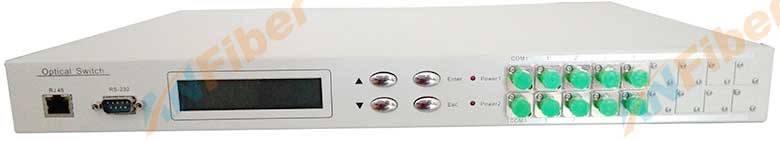

Rackmount 2X8 Optical Switch(Single mode and Multimode)
Rackmount 2X8 Fiber Optical Switch,All-pass and Non-blocking configuration has two input fibers and 8 number of output fibers.The switch connects the pair of inputs to a selected any pair of outputs.Rack-mounted 2XN optical switch can be manually selected from front panel or control via RS232 port,Ethernet port.This Fiber optical switch is available in any 2XN size up to 2x128,and can be built as a 2x4,2X8,2X9,2X10,2X12,2X16,2X24,2X32,2X45,2X64,2X96,2X128,etc.
  • Features of Rackmount Optical Switches:
  • Low loss,High Reliability,High Stability
  • Easy-to-use Rackmount Housing,LCD Display
  • RS232 and Ethernet Interface,User Friendly
  • Applications of Rackmount Optical Switches:
  • High-volume production testing
  • Dynamic Management of Optical Networks
  • Secure Communications

  • Single mode and Multimode 850/1310/1550nm Fiber Optical Switches
    Specifications of Rackmount Optical Switches:
    Parameters   ANFIBER-FSW-2X8(All-pass and Non-blocking)
    Operating wavelength nm 850±40 / 1300±40 1260~1650
    Test Wavelength nm 850/1300 1310/1550
    Insertion loss dB Typ:1.5    Max:1.8
    Return loss dB SM≥50   MM≥30
    Crosstalk dB ≥55
    PDL dB ≤0.05
    WDL dB ≤0.25
    TDL dB ≤0.25
    Repeatability dB ≤±0.02
    Lifetime times 107
    Transmission power mW ≤500
    Switch time ms ≤10(Sequence switch time of adjacent channel)
    Operating temperature -10+60
    Storage temperature -40+80
    Relative Humidity % 5   ~  95
    Supervision interface   Ethernet Interface and RS232( or RS-485 )
    Power supply V AC 85-264V,50/60Hz   OR    DC(36-72)V
    Dimensions mm 1U L483XW200XH44 (Up to 20 channel) customization is available.
    2U L483XW303XH89 (Up to 64 channel) customization is available.
    3U L483XW303XH139 (Up to 128 channel) customization is available.
    4U L483XW303XH177 (Up to 256 channel) customization is available.

    Rear Panel of Rackmount Optical Switches:
    Single mode and Multimode 850/1310/1550nm Fiber Optical Switches
    Ordering Information of Rackmount Optical Switches:
    N A B C D E G
    Channel Package Mode Wavelength Voltage Type Fiber type Connector
    2X4
    2X8
    2X16
    2X32
    2X64
    X:Other
    1U
    2U
    3U
    4U
    6U
    8U
    X:Other
    S:SM
    M:MM
    X: Other
    85: 850nm
    13: 1310nm
    15: 1550nm
    13/15:1310/1550nm
    X: Other
    AC: 85-264V
    DC: 36-72V
    AC/ DC:
    220V&48V
    5:50/125
    6:62.5/125
    9: 9/125
    X: Other
    FP: FC/PC
    FA: FC/APC
    SP: SC/PC
    SA: SC/APC
    SP: ST/PC
    SA: ST/APC
    LP: LC/PC
    LA: LC/APC
    X: Other

    Rack-mounted 2X8 Fiber Optical Switches Single mode and Multimode 850/1310/1550nm
