4X4 Optical Switch

4X4 Optical Switch

Name: 4X4 Optical Switch

Class: Optical Switch

Type: 4X4 Fiber Optic Switch

: Test Report

Previous: 2X4 Optical Switch

Next: 8+1 Optical Switch

4X4 Cascade Optical Switch Modules(Single mode and Multimode)

4X4 Optical Switch Modules are high-performance,fully non-blocking all optical matrix switch modules with 4x4 ports.It connects optical channels by redirecting any incoming optical signal into any selected output fiber.4X4 fiber optic switch is also available for "any-to-any" port connectivity.This matrix optical switches Modules is available in any MxN size up to 128x128.

Features of Optical Switch Modules:

Low Insertion Loss

Wide Wavelength Range

High Stability,High Reliability

Parallel Interface (TTL)

Epoxy-free on Optical Path

Latching and Non-latching

Single mode and Multi-mode

Applications of Optical Switch Modules:

Configurable OADM

MAN(Metropolitan Area Network)

Network Security and Monitoring

System Monitoring

Component Testing

R&D in Laboratory

Secure Communications

Specifications of Optical Switch Modules:

Parameters	Unit	ANFIBER-FSW-4X4
Wavelength Range	nm	850±40 / 1300±40	1260 ~ 1650
Test Wavelength	nm	850 / 1300	1310 / 1550
Insertion Loss	dB	Typ: 2.3 Max: 2.6
Return Loss	dB	MM ≥ 30 SM ≥ 50
Crosstalk	dB	MM ≥ 35 SM ≥ 55
PDL	dB	≤ 0.15
WDL	dB	≤ 0.35
Repeatability	dB	≤ ±0.05
Power Supply	V	5.0 ± 5%
Durability	Cycles	≥ 10 Million
Switching Time	ms	≤8
Optical Power	mW	≤500
Operating Temperature	℃	-5 ~ +70
Storage Temperature	℃	-40 ~ +85
Relative Humidity	%	5 ~ 95
Dimension	mm	(L)110×(W)95×(H)14 ±0.2

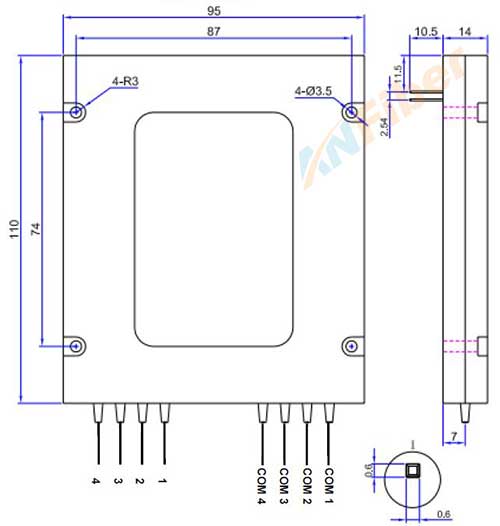

Dimension of Optical Switch Modules:

Single mode Multimode Latching Non-latching 850/1310/1550nm Fiber Optical Switches

Ordering Information of Optical Switch Modules:

A	B	C	D	E	F	G
Test Wavelength	Operating Voltage	Switch Type	Fiber Type	Tube Type	Fiber Length	Connector
85: 850nm 13: 1310nm 15: 1550nm 13/15:1310/1550nm X: Others	5: 5V	L: Latching X:Others	SM:SM,9/125 M5:MM,50/125 M6:MM,62.5/125 X:Others	25:250um 90:900um X: Others	0.5: 0.5m 1.0: 1.0m 1.5: 1.5m X: Others	FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC SP: ST/PC SA: ST/APC LP: LC/PC LA: LC/APC X: Other

4X4 matrix Optical Switches Single mode Multimode Latching Non-latching 850/1310/1550nm
