2X2 Bypass Optical Switch (A Type)

2X2 Bypass Optical Switch (A Type)

Name: 2X2 Bypass Optical Switch (A Type)

Class: Optical Switch

Type: 2X2 Optical Bypass Switch

: Test Report

Previous: 2X2 Optical Switch (B Type)

Next: 1X4 Optical Switch Modules

2X2 Bypass Optical Switch(Single mode)

2X2 Optical Bypass Switch(A Type) connects optical channels by redirecting an incoming optical signal into a selected output fiber.The 2X2 Opto-Mechanical Bypass Optical Switches consists of 2 input and 2 output fiber ports that selectively transmits, redirects, or blocks optical power in a fiber optic transmission line.2X2 Bypass optical switches is designed for use in optical fiber communication networks and measurement instruments.

Features of Bypass Optical Switch:

Low Insertion Loss

Wide Wavelength Range

High Stability,High Reliability

Epoxy-free on Optical Path

Latching and Non-latching

Single mode

Applications of Bypass Optical Switch:

Configurable OADM

MAN(Metropolitan Area Network)

Network Security and Monitoring

System Monitoring

Component Testing

R&D in Laboratory

Specifications of Bypass Optical Switch:

Parameters	Unit	ANFIBER-FSW-2X2-Bypass(A Type)
Fiber Type		Single mode
Wavelength Range	nm	1260~1650
Test Wavelength	nm	1310/1550
Insertion Loss ^{1, 2}	dB	Typ: 0.8 Max: 1.0
Return Loss ^{1, 2}	dB	SM≥50
Crosstalk ¹	dB	SM≥55
PDL	dB	≤0.05
WDL	dB	≤0.25
Repeatability	dB	≤±0.02
Operating Voltage	V	3.0 or 5.0
Durability	Cycles	≥10 Million
Switch Time	ms	≤8
Optical Power	mW	≤500
Operating Temperature	℃	-20~+70
Storage Temperature	℃	-40~+85
Relative Humidity	%	5 ~ 95
Weight	g	25
Dimension	mm	(L)55.0X(W)30.0X(H)12.8 ±0.2
Note: ¹Within operating temperature and SOP. ²Customization is available.

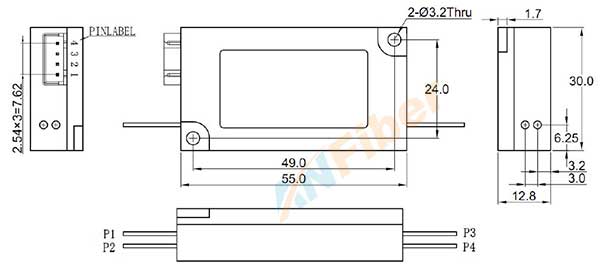

Dimension of Bypass Optical Switch:

Single mode Latching Non-latching 1310/1550nm bypass Fiber Optic Switches

Ordering Information of Bypass Optical Switch:

A	B	C	D	E	F	G
Test Wavelength	Operating Voltage	Switch Type	Fiber Type	Tube Type	Fiber Length	Connector
13: 1310nm 15: 1550nm 13/15:1310/1550nm X: Others	3: 3V 5: 5V	L: Latching N:Non-latching	SM:SM,9/125 X:Others	25:250um 90:900um X: Others	0.5: 0.5m 1.0: 1.0m 1.5: 1.5m X: Others	FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC SP: ST/PC SA: ST/APC LP: LC/PC LA: LC/APC X: Other

2X2 Bypass Optical Switches Single mode Latching Non-latching 1310/1550nm
