Mini Dual 2X2 Bypass Optical Switch

Name: Mini Dual 2X2 Bypass Optical Switch
Class: Optical Switch
Type: Mini Dual 2X2 Optical Bypass Switch

Mini Dual 2X2 Bypass Optical Switch(Single mode and Multimode)
Mini size Dual 2X2 Bypass Optical Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber.The Mini Dual 2X2 Opto-Mechanical Optical Switches consists of 2 input and 2 output fiber ports that selectively transmits, redirects, or blocks optical power in a fiber optic transmission line.Dual 2X2 optical switches is designed for use in optical fiber communication networks and measurement instruments.
  • Features of Bypass Optical Switch:
  • Low Insertion Loss
  • Wide Wavelength Range
  • High Stability,High Reliability
  • Epoxy-free on Optical Path
  • Latching and Non-latching
  • Single mode and Multi-mode
  • Applications of Bypass Optical Switch:
  • Configurable OADM
  • MAN(Metropolitan Area Network)
  • Network Security and Monitoring
  • System Monitoring
  • Component Testing
  • R&D in Laboratory

  • Specifications of Bypass Optical Switch:
    Parameters Unit ANFIBER-FSW-Mini Dual 2X2 Bypass
    Fiber Type   Multimode Single mode
    Wavelength Range nm 850±40/1300±40 1260~1650
    Test Wavelength nm 850/1300 1310/1550
    Insertion Loss 1, 2 dB Typ: 0.8   Max: 1.2
    Return Loss 1, 2 dB MM≥30  SM≥50
    Crosstalk 1 dB MM≥35  SM≥55
    PDL dB ≤0.05
    WDL dB ≤0.3
    Repeatability dB ≤±0.02
    Operating Voltage V 5.0
    Voltage Pulse Width
    (Latching)
    ms ≥20
    Durability Cycles ≥10 Million
    Switch Time ms ≤8
    Optical Power mW ≤500
    Operating Temperature -20~+70
    Storage Temperature -40~+85
    Relative Humidity % 5 ~ 95
    Weight g 14
    Dimension mm (L)21.0X(W)9.0X(H)12.0 ±0.2
    Note:   Within operating temperature and SOP.
                  2  Customization is available.

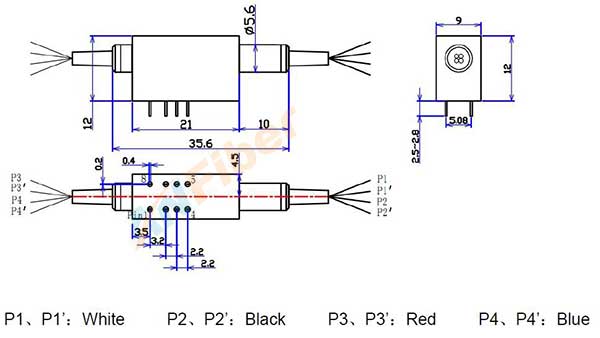

    Dimension of Bypass Optical Switch:
    Single mode Multimode Latching Non-latching 850/1310/1550nm bypass Fiber Optic Switches
    Ordering Information of Bypass Optical Switch:
    A B C D E F G
    Test
    Wavelength
    Operating
    Voltage
    Switch Type Fiber Type Tube
    Type
    Fiber Length Connector
    85: 850nm
    13: 1310nm
    15: 1550nm
    13/15:1310/1550nm
    X: Others
    3: 3V
    5: 5V
    L: Latching
    N:Non-latching
    SM:SM,9/125
    M5:MM,50/125
    M6:MM,62.5/125
    X:Others
    25:250um
    90:900um
    X: Others
    0.5: 0.5m
    1.0: 1.0m
    1.5: 1.5m
    X: Others
    FP: FC/PC
    FA: FC/APC
    SP: SC/PC
    SA: SC/APC
    SP: ST/PC
    SA: ST/APC
    LP: LC/PC
    LA: LC/APC
    X: Other

    Mini Dual 2X2 Bypass Optical Switches Single mode Multimode Latching Non-latching 850/1310/1550nm
