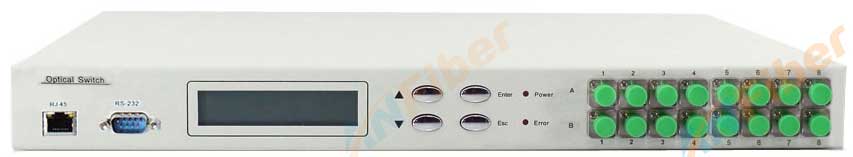

Rack Mount 4X8 8X8 Matrix Optical Switch

Name: Rack Mount 4X8 8X8 Matrix Optical Switch
Class: Rack-mounted Optical Switch
Type: Rack-Mounted 4X8 8X8 Optical Switch

Rackmount 4X8 8X8 Optical Switch(Single mode and Multimode)
Rackmount 4X8 8X8 Optical Matrix Switches allow simultaneous connection between 4 or 8 inputs and 4 output fibers,in a fully non-blocking,all-optical,cross-connect configuration. Matrix optical switches are useful to add redundancy to an optical network, or for resource sharing in test & measurement applications.Rack mount Matrix Optical Switches can be manually selected from front panel or control via RS232 port, Ethernet port.This matrix optical switch is available in any MxN size up to 128x128.
  • Features of Matrix Optical Switches:
  • Low loss,High Reliability,High Stability
  • Easy-to-use Rackmount Housing,LCD Display
  • RS232 and Ethernet Interface,User Friendly
  • Applications of Matrix Optical Switches:
  • High-volume production testing
  • Dynamic Management of Optical Networks
  • Secure Communications

  • Single mode and Multimode 850/1310/1550nm Fiber Optical Switches
    Specifications of Matrix Optical Switches:
    Parameters   ANFIBER-FSW-4X8 8X8(All-pass and Non-blocking)
    Operating wavelength nm 850±40 / 1300±40 1260~1650
    Test Wavelength nm 850/1300 1310/1550
    Insertion loss dB

    Typ:2.2    Max:2.5     (4X8)

    Typ:2.5    Max:3.0     (8X8)

    Return loss dB SM≥50   MM≥30
    Crosstalk dB SM≥55   MM≥35
    PDL dB ≤0.05
    WDL dB ≤0.25
    TDL dB ≤0.25
    Repeatability dB ≤±0.05
    Lifetime times 107
    Transmission power mW ≤500
    Switch time ms ≤10(Sequence switch time of adjacent channel)
    Operating temperature -10+60
    Storage temperature -40+80
    Relative Humidity % 5   ~  95
    Supervision interface   Ethernet Interface and RS232( or RS-485 )
    Power supply V AC 85-264V,50/60Hz   OR    DC(36-72)V
    Dimensions mm 1U L483XW200XH44 (Up to 20 channel) customization is available.
    2U L483XW303XH89 (Up to 64 channel) customization is available.
    3U L483XW303XH139 (Up to 128 channel) customization is available.
    4U L483XW303XH177 (Up to 256 channel) customization is available.

    Rear Panel of Matrix Optical Switches:
    Single mode and Multimode 850/1310/1550nm Fiber Optical Switches
    Ordering Information of Matrix Optical Switches:
    N A B C D E G
    Channel Package Mode Wavelength Voltage Type Fiber type Connector
    4X4
    4X8
    8X8
    8X16
    16X16
    X:Other
    1U
    2U
    3U
    4U
    6U
    8U
    X:Other
    S:SM
    M:MM
    X: Other
    85: 850nm
    13: 1310nm
    15: 1550nm
    13/15:1310/1550nm
    X: Other
    AC: 85-264V
    DC: 36-72V
    AC/ DC:
    220V&48V
    5:50/125
    6:62.5/125
    9: 9/125
    X: Other
    FP: FC/PC
    FA: FC/APC
    SP: SC/PC
    SA: SC/APC
    SP: ST/PC
    SA: ST/APC
    LP: LC/PC
    LA: LC/APC
    X: Other

    Rack-mounted 4X8 8X8 Fiber Optical Switches Single mode and Multimode 850/1310/1550nm
