Mini 2X2 Bypass Optical Switch (single-ended)

Name: Mini 2X2 Bypass Optical Switch (single-ended)
Class: Optical Switch
Type: Mini 2X2 Optical Bypass Switch

2X2 Bypass Optical Switch(single-ended Single mode)
Mini 2X2 Bypass Optical Switch (single-ended) connects optical channels by redirecting an incoming optical signal into a selected output fiber.The 2X2 Opto-Mechanical Bypass Optical Switches consists of 2 input and 2 output fiber ports that selectively transmits, redirects, or blocks optical power in a fiber optic transmission line.2X2 Bypass optical switches is designed for use in optical fiber communication networks and measurement instruments.
  • Features of Bypass Optical Switch:
  • Low Insertion Loss
  • Wide Wavelength Range
  • High Stability,High Reliability
  • Epoxy-free on Optical Path
  • Latching and Non-latching
  • Single mode
  • Applications of Bypass Optical Switch:
  • Configurable OADM
  • MAN(Metropolitan Area Network)
  • Network Security and Monitoring
  • System Monitoring
  • Component Testing
  • R&D in Laboratory

  • Specifications of Bypass Optical Switch:
    Parameters Unit ANFIBER-FSW-Mini 2X2 Bypass
    Fiber Type   Single mode
    Wavelength Range nm 1260~1650
    Test Wavelength nm 1310/1550
    Insertion Loss 1, 2 dB Typ: 0.6  Max: 0.8
    Return Loss 1, 2 dB SM≥50
    Crosstalk 1 dB SM≥55
    PDL dB 0.05
    WDL dB ≤0.25
    Repeatability dB ≤±0.02
    Operating Voltage V 3.0 or 5.0
    Durability Cycles ≥10 Million
    Voltage Pluse Width
    (Latching)
    ms ≥ 20
    Switch Time ms ≤8
    Optical Power mW ≤500
    Operating Temperature -20 ~ +70
    Storage Temperature -40~+85
    Relative Humidity % 5 ~ 95
    Weight g 13
    Dimension mm (L )20×(W)9.5×(H)8.5 ±0.2
    Note:   Within operating temperature and SOP.
                  2  Customization is available.

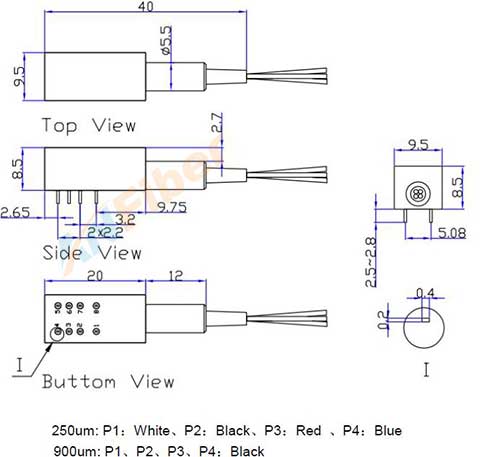

    Dimension of Bypass Optical Switch:
    single-ended Single mode Latching Non-latching 1310/1550nm bypass Fiber Optic Switches
    Ordering Information of Bypass Optical Switch:
    A B C D E F G
    Test
    Wavelength
    Operating
    Voltage
    Switch Type Fiber Type Tube
    Type
    Fiber Length Connector
    13: 1310nm
    15: 1550nm
    13/15:1310/1550nm
    X: Others
    3: 3V
    5: 5V
    L: Latching
    N:Non-latching
    SM:SM,9/125
    X:Others
    25:250um
    90:900um
    X: Others
    0.5: 0.5m
    1.0: 1.0m
    1.5: 1.5m
    X: Others
    FP: FC/PC
    FA: FC/APC
    SP: SC/PC
    SA: SC/APC
    SP: ST/PC
    SA: ST/APC
    LP: LC/PC
    LA: LC/APC
    X: Other

    Mini 2X2 Bypass Optical Switches single-ended Single mode Latching Non-latching 1310/1550nm
