Rackmount Dual 1XN Optical Switch (1<N≤512)

Name: Rackmount Dual 1XN Optical Switch (1<N≤512)
Class: Rack-mounted Optical Switch
Type: Rack-mounted Optical Switch

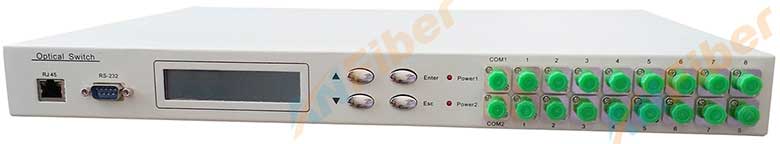

Rackmount Dual 1XN Optical Switch(Single mode and Multimode)
Rackmount Dual Fiber Optical Switch is equivalent to two single 1XN fiber optic switches in one switch that change state together (they also can be switched independently).Rack mount Dual Optical Switches can be manually selected from front panel or control via RS232 port, Ethernet port.This Dual optical switch is available in any Dual 1XN size up to 1x128,and can be built as a 1x4,1X8,1X9,1X10,1X12,1X16,1X24,1X32,1X48,1X64,1X96,1X128,1X512,etc.
  • Features of Dual Optical Switches:
  • Low loss,High Reliability,High Stability
  • Available in any 1xN configuration up to 1x512
  • Many configuration possibilities
  • Easy-to-use Rackmount Housing,LCD Display
  • RS232 and Ethernet Interface,User Friendly
  • Applications of Dual Optical Switches:
  • High-volume production testing
  • Testing of fiber,optical component
  • Dynamic Management of Optical Networks
  • Multiple device testing
  • Secure Communications

  • Single mode and Multimode Rack mount Dual 1XN Optical Switches(1x4,1X8,1X9,1X10,1X12,1X16,1X24,1X32,1X48,1X64,1X96,1X128,1X512)
    Specifications of Dual Optical Switches:
    Parameters   ANFIBER-FSW-Dual 1XN  N (1 ~ 512)
    Insertion loss dB N (1 ~ 64) N (64 ~ 128) N (128 ~ 256) N (256 ~ 512)
    Typ:0.8  Max:1.0 Typ:1.0  Max:1.2 Typ:1.2  Max:1.5 Typ:1.5  Max:2.0
    Operating wavelength nm 850±40 / 1300±40 1260~1650
    Test Wavelength nm 850/1300 1310/1550
    Return loss dB SM≥55   MM≥30
    Crosstalk dB ≥55
    PDL dB ≤0.05
    WDL dB ≤0.25
    TDL dB ≤0.25
    Repeatability dB ≤±0.05
    Lifetime times 107
    Transmission power mW ≤500
    Switch time ms ≤10(Sequence switch time of adjacent channel)
    Operating temperature -10+60
    Storage temperature -40+80
    Relative Humidity % 5   ~  95
    Supervision interface   Ethernet Interface and RS232( or RS-485 )
    Power supply V AC 85-264V,50/60Hz   OR    DC(36-72)V
    Dimensions mm 1U L483XW200XH44 (Up to 20 channel) customization is available.
    2U L483XW303XH89 (Up to 64 channel) customization is available.
    3U L483XW303XH139 (Up to 128 channel) customization is available.
    4U L483XW303XH177 (Up to 256 channel) customization is available.

    Rear Panel of Dual Optical Switches:
    Single mode and Multimode Rack mount Dual 1XN Optical Switches(1x4,1X8,1X9,1X10,1X12,1X16,1X24,1X32,1X48,1X64,1X96,1X128,1X512)
    Ordering Information of Dual Optical Switches:
    N A B C D E F G
    Channel Package Mode Wavelength Voltage Type Fiber type Optical Route Control Way Connector
    1~32
    32~64
    64~128
    128~256
    256~512
    1U
    2U
    3U
    4U
    6U
    8U
    X:Other
    S:SM
    M:MM
    X: Other
    85: 850nm
    13: 1310nm
    15: 1550nm
    13/15:1310/1550nm
    X: Other
    AC: 85-264V
    DC: 36-72V
    AC/ DC:
    220V&48V
    5:50/125
    6:62.5/125
    9: 9/125
    X: Other
    1Unified Control
    2Independent Control
    3Independent Control & Unified Control
    FP: FC/PC
    FA: FC/APC
    SP: SC/PC
    SA: SC/APC
    SP: ST/PC
    SA: ST/APC
    LP: LC/PC
    LA: LC/APC
    X: Other

    Rack mount Dual 1XN Optical Switches(1x4,1X8,1X9,1X10,1X12,1X16,1X24,1X32,1X48,1X64,1X96,1X128,1X512)
