Rack Mount Dual 1X16 Optical Switch

Name: Rack Mount Dual 1X16 Optical Switch
Class: Rack-mounted Optical Switch
Type: Rack-Mounted Dual 1X16 Optical Switch

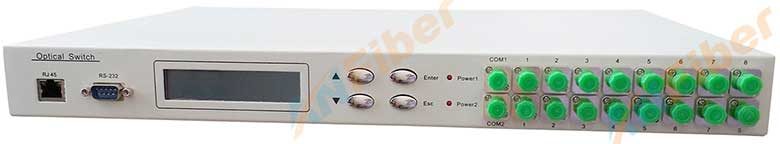

Rackmount Dual 1X16 Optical Switch(Single mode and Multimode)
Rackmount Dual Fiber Optical Switch is equivalent to two single 1X16 fiber optic switches in one switch that change state together (they also can be switched independently).Rack mount Matrix Optical Switches can be manually selected from front panel or control via RS232 port, Ethernet port.This matrix optical switch is available in any Dual 1XN size up to 1x128,and can be built as a 1x4,1X8,1X9,1X10,1X12,1X16,1X24,1X32,1X45,1X64,1X96,1X128,1X512,etc.
  • Features of Dual Optical Switches:
  • Low loss,High Reliability,High Stability
  • Many configuration possibilities
  • Easy-to-use Rackmount Housing,LCD Display
  • RS232 and Ethernet Interface,User Friendly
  • Applications of Dual Optical Switches:
  • High-volume production testing
  • Testing of fiber,optical component
  • Dynamic Management of Optical Networks
  • Secure Communications

  • Single mode and Multimode 850/1310/1550nm Fiber Optical Switches
    Specifications of Dual Optical Switches:
    Parameters   ANFIBER-FSW-Dual 1X16
    Operating wavelength nm 850±40 / 1300±40 1260~1650
    Test Wavelength nm 850/1300 1310/1550
    Insertion loss dB Typ:0.8    Max:1.0
    Return loss dB SM≥50   MM≥30
    Crosstalk dB SM≥55   MM≥35
    PDL dB ≤0.05
    WDL dB ≤0.25
    TDL dB ≤0.25
    Repeatability dB ≤±0.05
    Lifetime times 107
    Transmission power mW ≤500
    Switch time ms ≤10(Sequence switch time of adjacent channel)
    Operating temperature -10+60
    Storage temperature -40+80
    Relative Humidity % 5   ~  95
    Supervision interface   Ethernet Interface and RS232( or RS-485 )
    Power supply V AC 85-264V,50/60Hz   OR    DC(36-72)V
    Dimensions mm 1U L483XW200XH44 (Up to 20 channel) customization is available.
    2U L483XW303XH89 (Up to 64 channel) customization is available.
    3U L483XW303XH139 (Up to 128 channel) customization is available.
    4U L483XW303XH177 (Up to 256 channel) customization is available.

    Rear Panel of Dual Optical Switches:
    Single mode and Multimode 850/1310/1550nm Fiber Optical Switches
    Ordering Information of Dual Optical Switches:
    N A B C D E G
    Channel Package Mode Wavelength Voltage Type Fiber type Connector
    D1X4
    D1X8
    D1X16
    D1X32
    D1X64
    X:Other
    1U
    2U
    3U
    4U
    6U
    8U
    X:Other
    S:SM
    M:MM
    X: Other
    85: 850nm
    13: 1310nm
    15: 1550nm
    13/15:1310/1550nm
    X: Other
    AC: 85-264V
    DC: 36-72V
    AC/ DC:
    220V&48V
    5:50/125
    6:62.5/125
    9: 9/125
    X: Other
    FP: FC/PC
    FA: FC/APC
    SP: SC/PC
    SA: SC/APC
    SP: ST/PC
    SA: ST/APC
    LP: LC/PC
    LA: LC/APC
    X: Other

    Rack mount Dual 1X16 Optical Switches Single mode and Multimode 850/1310/1550nm
